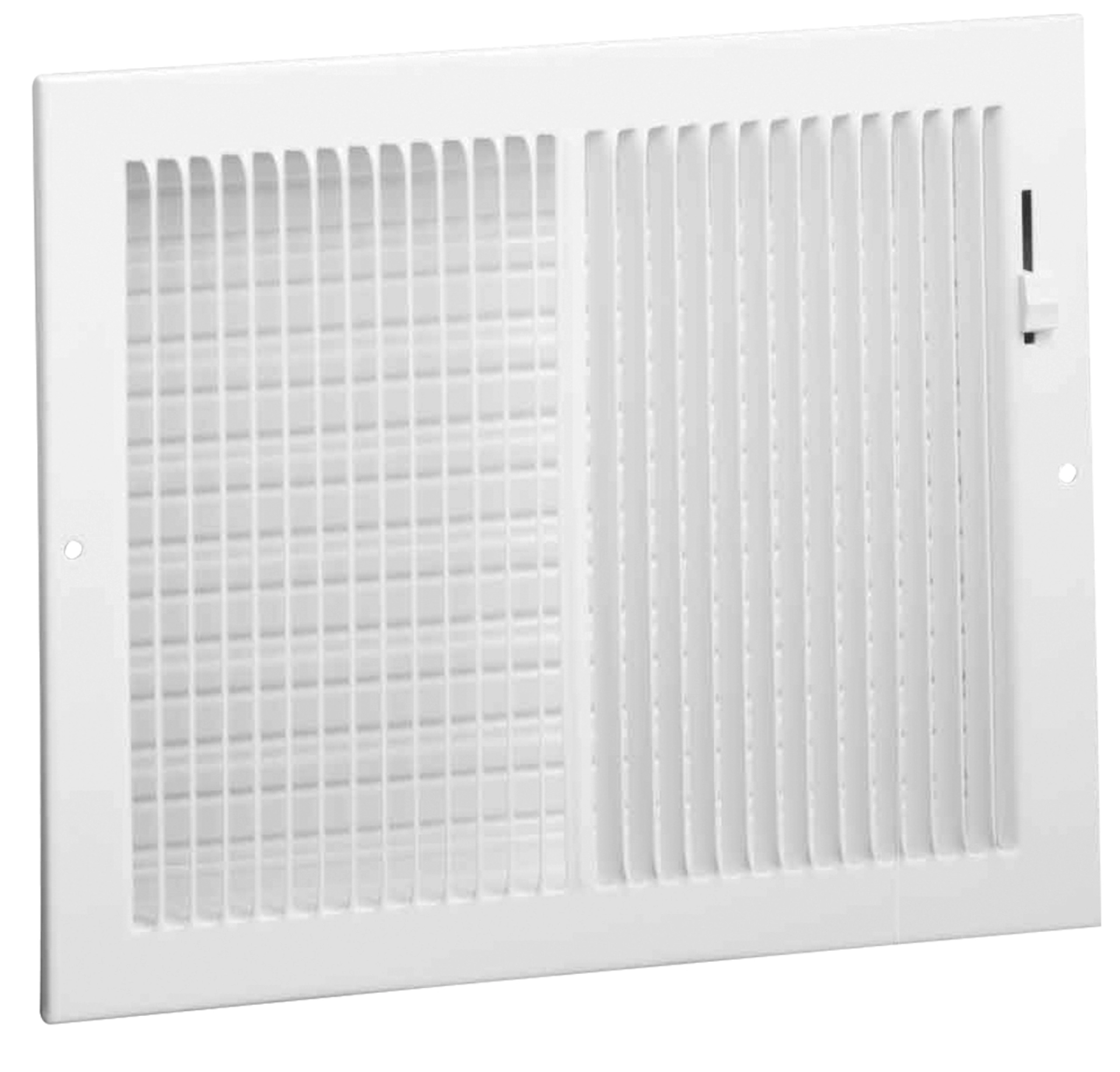

356 — Steel 2-way Register, 1/3” Fin Spacing

The Ameriflow 356 Two-Way Register is an all all-steel register with fins spaced 1/3" apart and set at 20 degrees. The galvanized multi-shutter valve sits at a maximum depth of 1 5/8" deep when fully opened, making this register ideal for shallow duct installations.

Construction:

All-steel construction
Used for ceiling or sidewall installations
For heating or cooling
Ideal for shallow duct installations
Two-way deflection
1/3" spaced fins set at 20 degrees

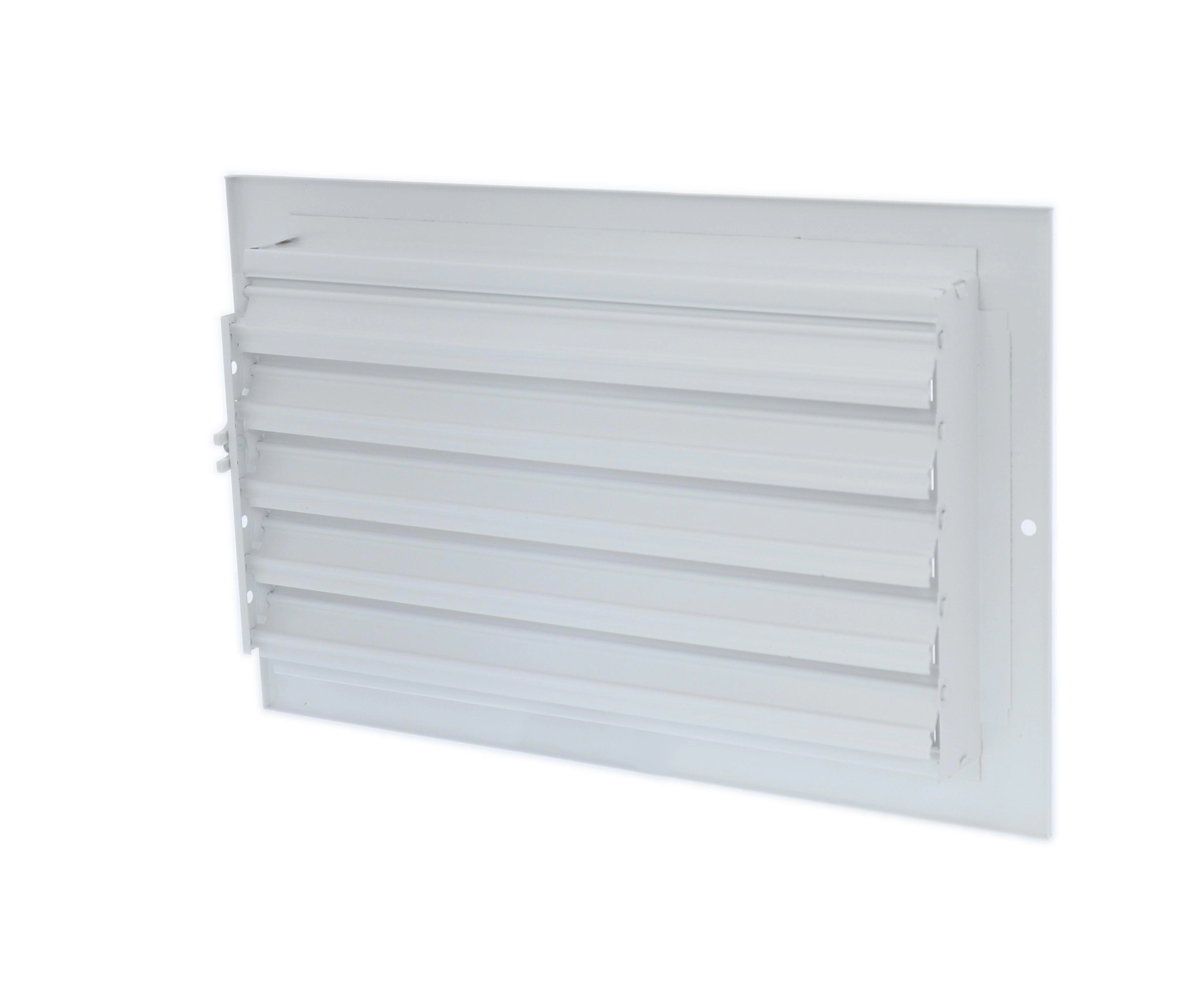

Galvanized multi-shutter valve
1-5/8" depth when fully opened
Interlocking valve louvers for positive shut-off

Finish:

White finish

Available sizes (inches)

	Height
Width		4	6	8	10
	6	•	•
	8	•	•	•
	10	•	•	•	•
	12	•	•	•
	14	•	•	•
	16		•

Engineering Data — 356 EG

Submittal Data — 356 Register

Product Images
